A long-term goal in CT imaging is to achieve fast and accurate 3D reconstruction from sparse-view projections, thereby reducing radiation exposure, lowering system cost, and enabling timely imaging in clinical workflows.
Recent feed-forward approaches have shown strong potential toward this overarching goal, yet their results still suffer from artifacts and loss of fine details.
In this work, we introduce Iterative Latent Volumes (ILV), a feed-forward framework that integrates data-driven priors with classical iterative reconstruction principles to overcome key limitations of prior feed-forward models in sparse-view CBCT reconstruction.
At its core, ILV constructs an explicit 3D latent volume that is repeatedly updated by conditioning on multi-view X-ray features and the learned anatomical prior, enabling the recovery of fine structural details beyond the reach of prior feed-forward models.
In addition, we develop and incorporate several key architectural components, including an X-ray feature volume, group cross-attention, efficient self-attention, and view-wise feature aggregation, that efficiently realize its core latent volume refinement concept.
Extensive experiments on a large-scale dataset of approximately 14,000 CT volumes demonstrate that ILV significantly outperforms existing feed-forward and optimization-based methods in both reconstruction quality and speed. These results show that ILV enables fast and accurate sparse-view CBCT reconstruction suitable for clinical use.

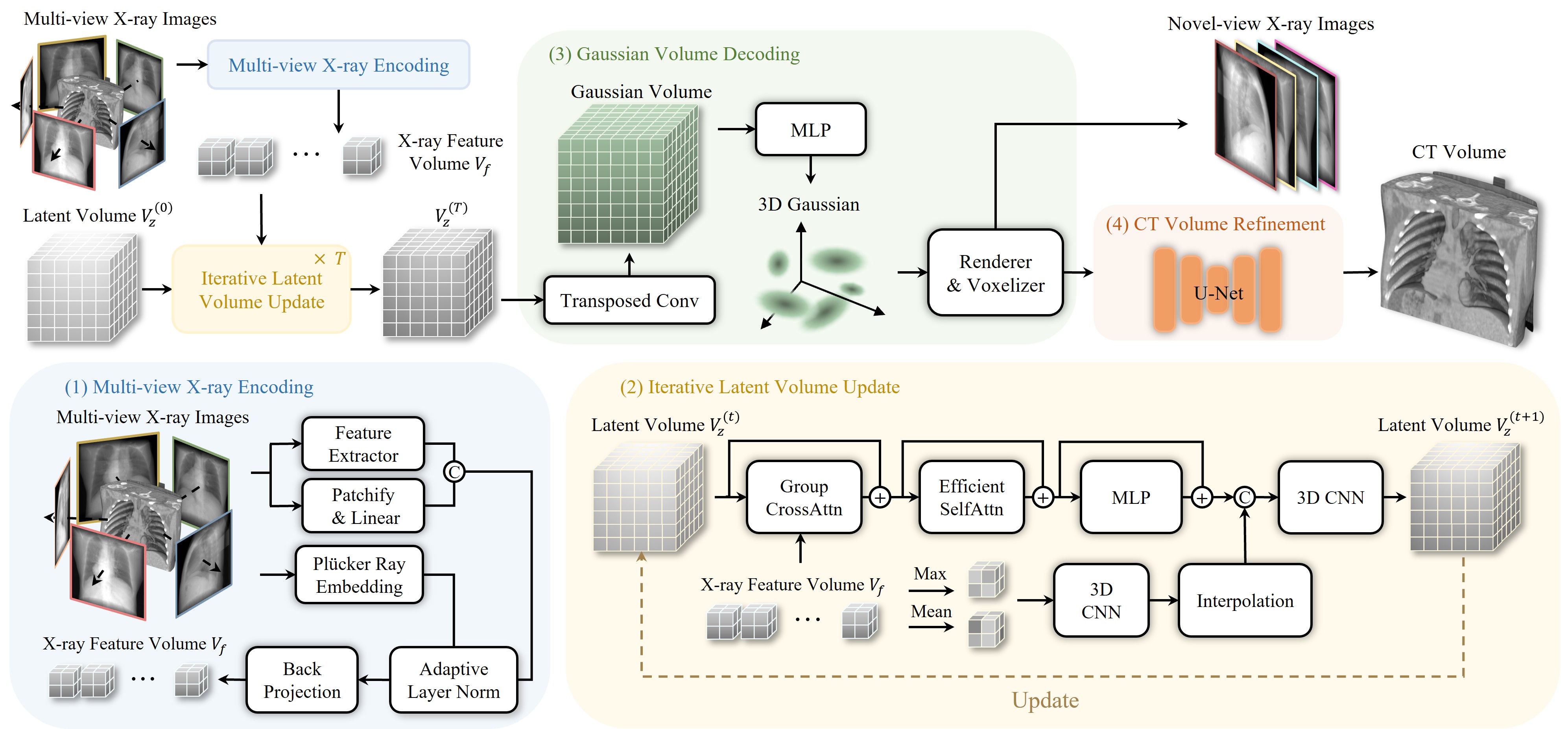

Overview of the proposed ILV. Given multi-view X-ray images, ILV reconstructs a 3D CT volume or synthesizes novel-view projections. The overall network consists of four stages: (1) Multi-view X-ray image encoding, (2) Latent volume update, (3) Gaussian volume decoding, and (4) CT volume refinement. (For more details, please refer to our paper.)
Comparison with feed-forward methods
| Type | Method | Time ↓ | 6-View | 8-View | 10-View | |||
|---|---|---|---|---|---|---|---|---|
| PSNR↑ | SSIM↑ | PSNR↑ | SSIM↑ | PSNR↑ | SSIM↑ | |||
| Traditional | FDK | 0.23s | 12.79 | 0.122 | 14.58 | 0.145 | 14.75 | 0.166 |
| ASD-POCS | 1m 32s | 22.48 | 0.661 | 23.57 | 0.695 | 24.37 | 0.721 | |
| SART | 2m 48s | 23.21 | 0.689 | 24.26 | 0.712 | 25.06 | 0.733 | |
| 2D FF | FreeSeed | 4.5s | 28.81 | 0.793 | 29.61 | 0.833 | 30.34 | 0.837 |
| 3D FF | DIF-Net | 3.0s | 24.18 | 0.720 | 24.59 | 0.734 | 24.65 | 0.745 |
| DIF-Gaussian | 3.0s | 26.56 | 0.810 | 27.46 | 0.829 | 27.88 | 0.837 | |
| ILV (Ours) | 0.59s | 33.45 | 0.922 | 33.25 | 0.919 | 33.84 | 0.924 | |
Comparison with optimization-based (NeRF/Gaussian) methods
| Method | Time ↓ | 6-View | 10-View | 24-View | |||
|---|---|---|---|---|---|---|---|
| PSNR↑ | SSIM↑ | PSNR↑ | SSIM↑ | PSNR↑ | SSIM↑ | ||
| IntraTomo | 9m 26s | 24.49 | 0.722 | 26.30 | 0.772 | 28.62 | 0.837 |
| NAF | 5m 04s | 23.74 | 0.678 | 26.17 | 0.741 | 31.34 | 0.876 |
| SAX-NeRF | 1h 35m | 24.58 | 0.754 | 26.78 | 0.794 | 33.14 | 0.919 |
| R²-Gaussian | 17m 37s | 24.54 | 0.773 | 27.26 | 0.823 | 33.29 | 0.931 |
| ILV (Ours) | 0.76s | 33.57 | 0.923 | 33.95 | 0.925 | 35.93 | 0.941 |

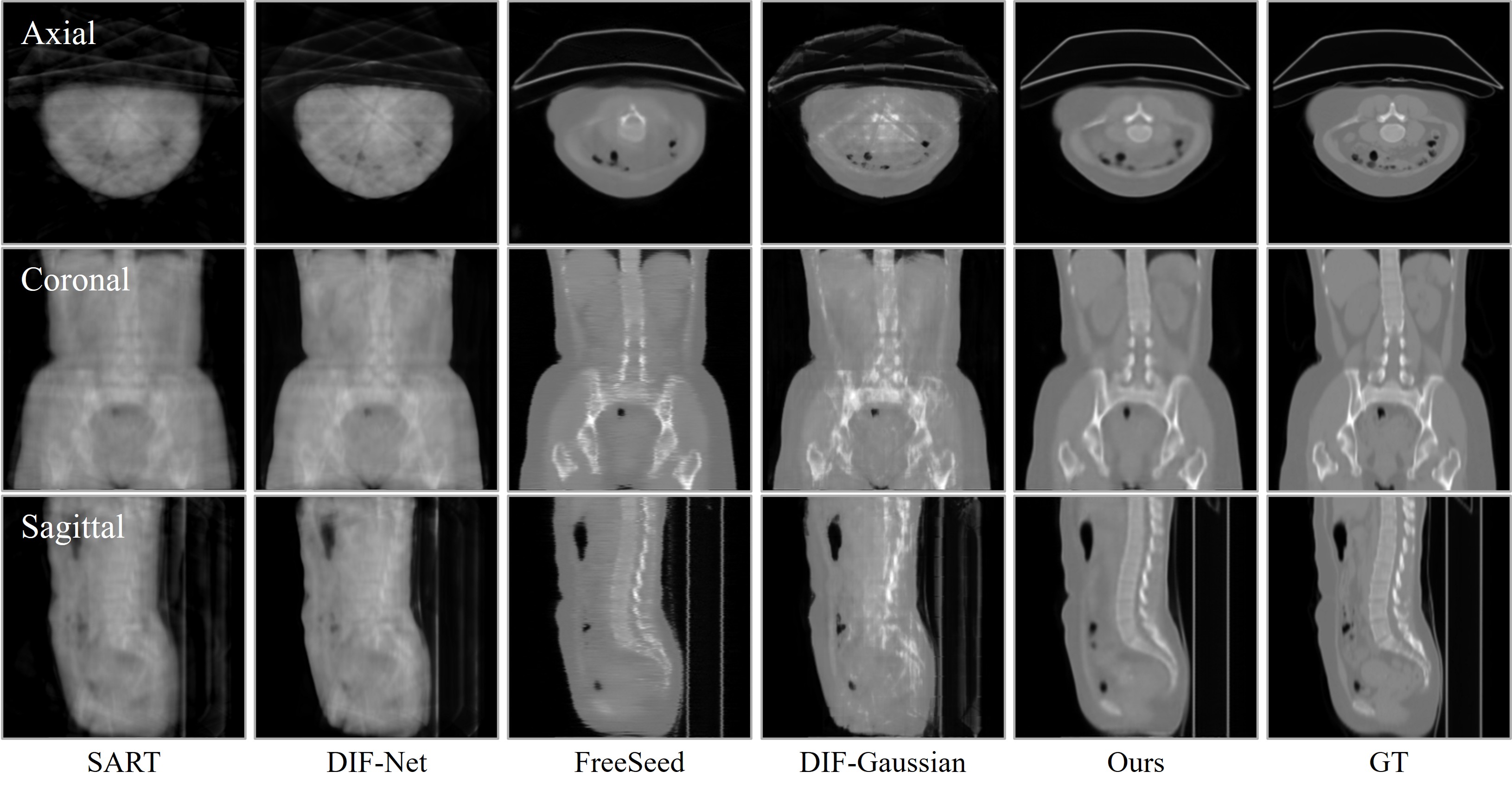

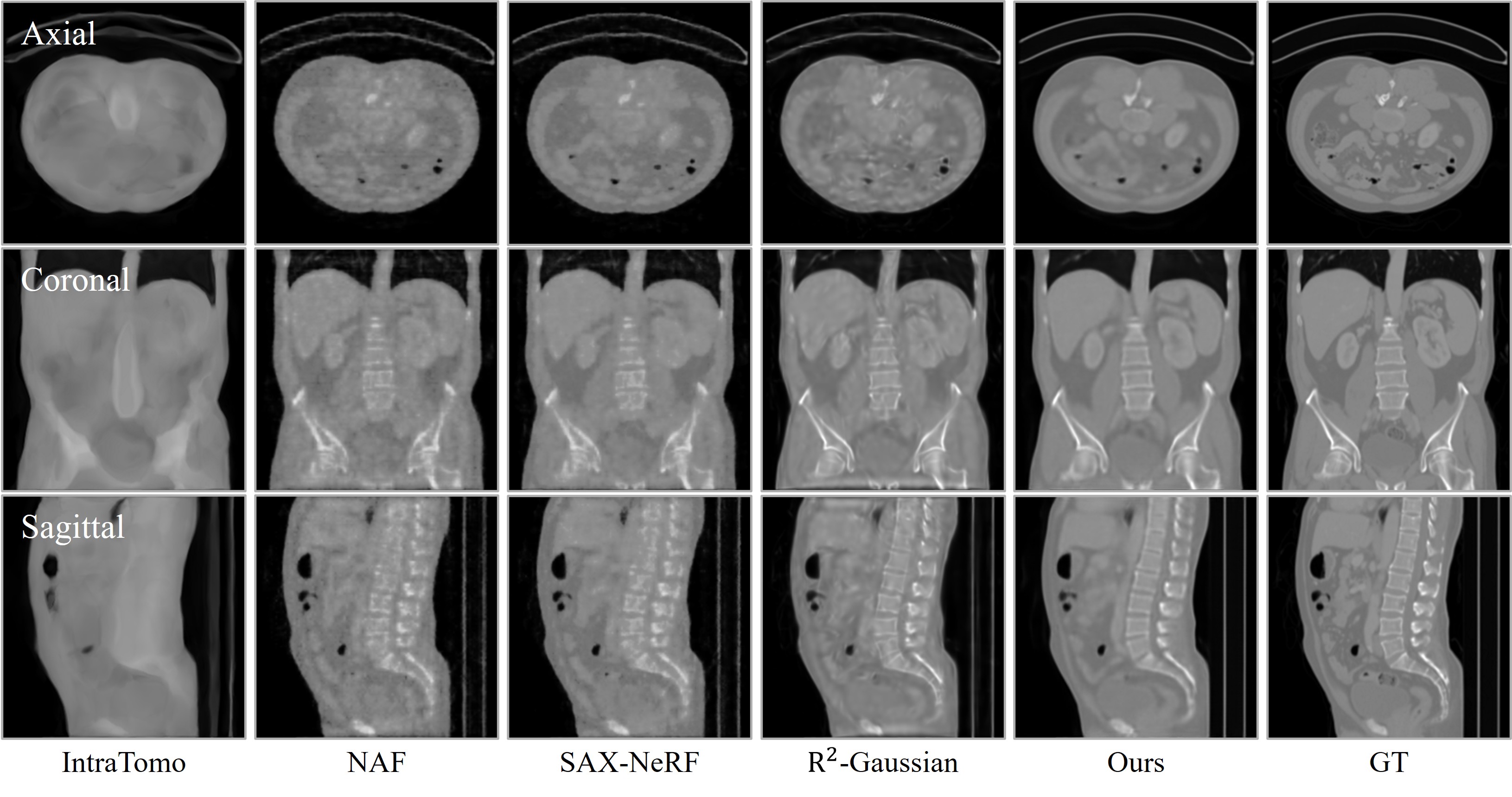

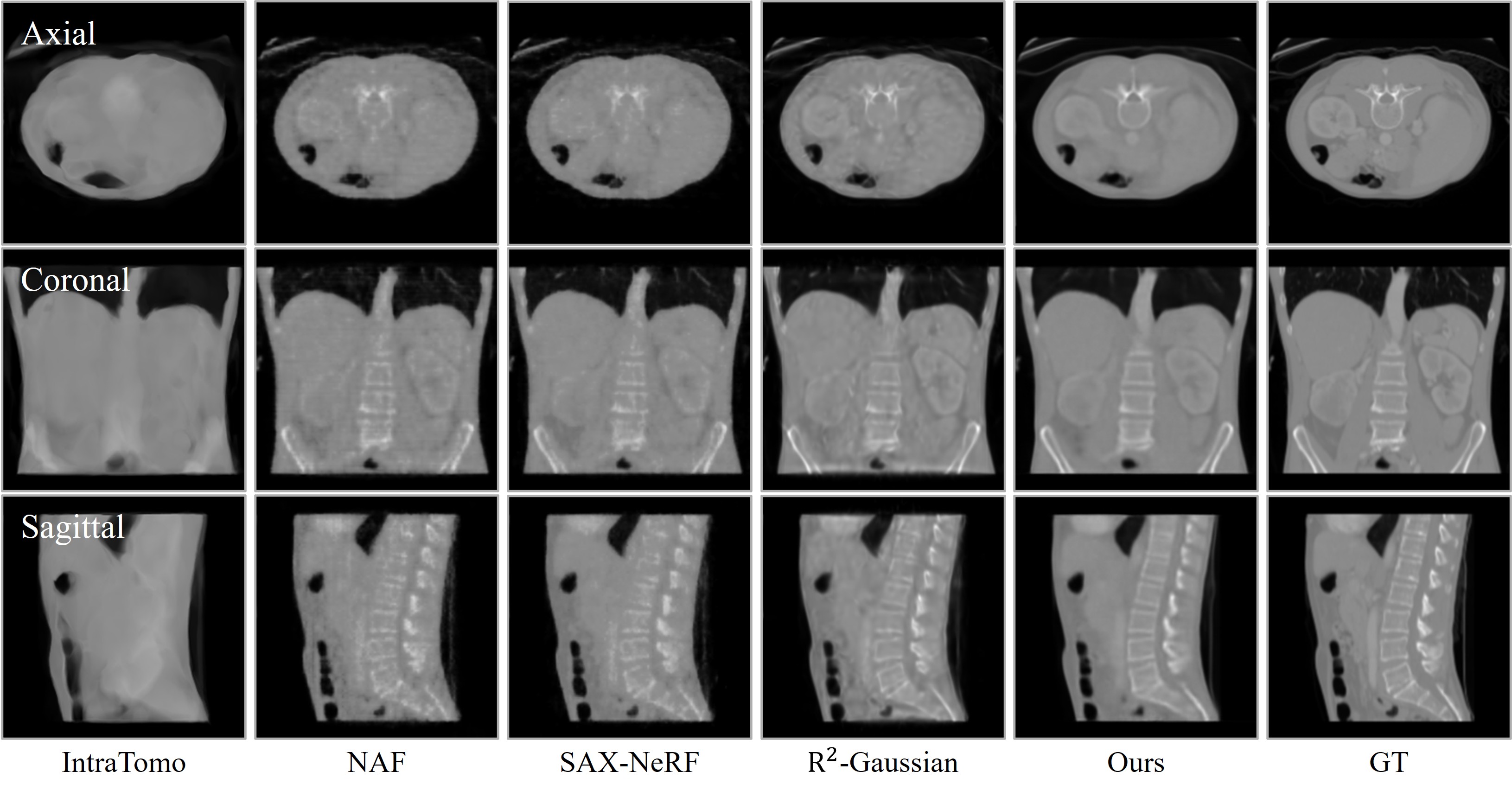

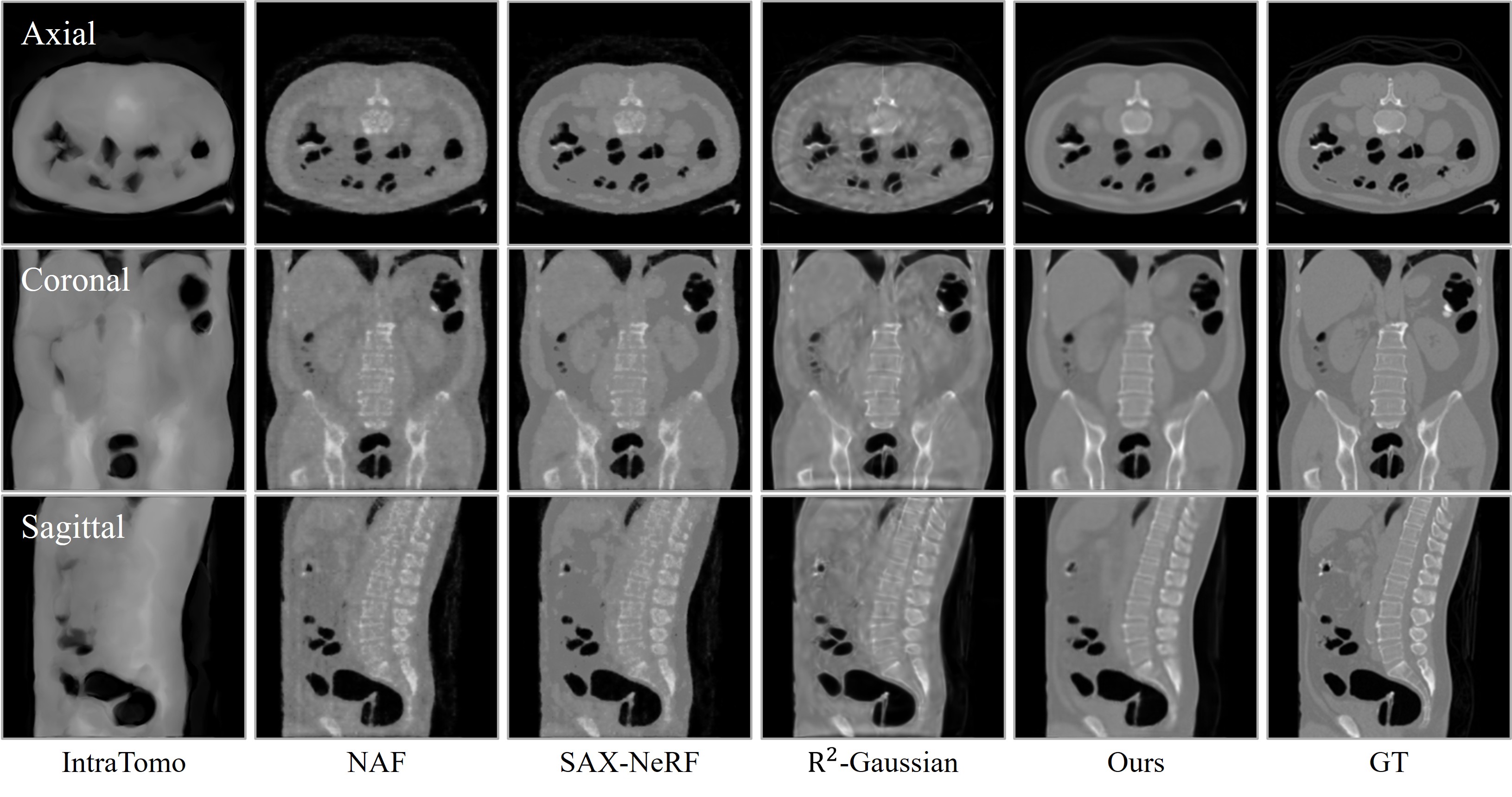

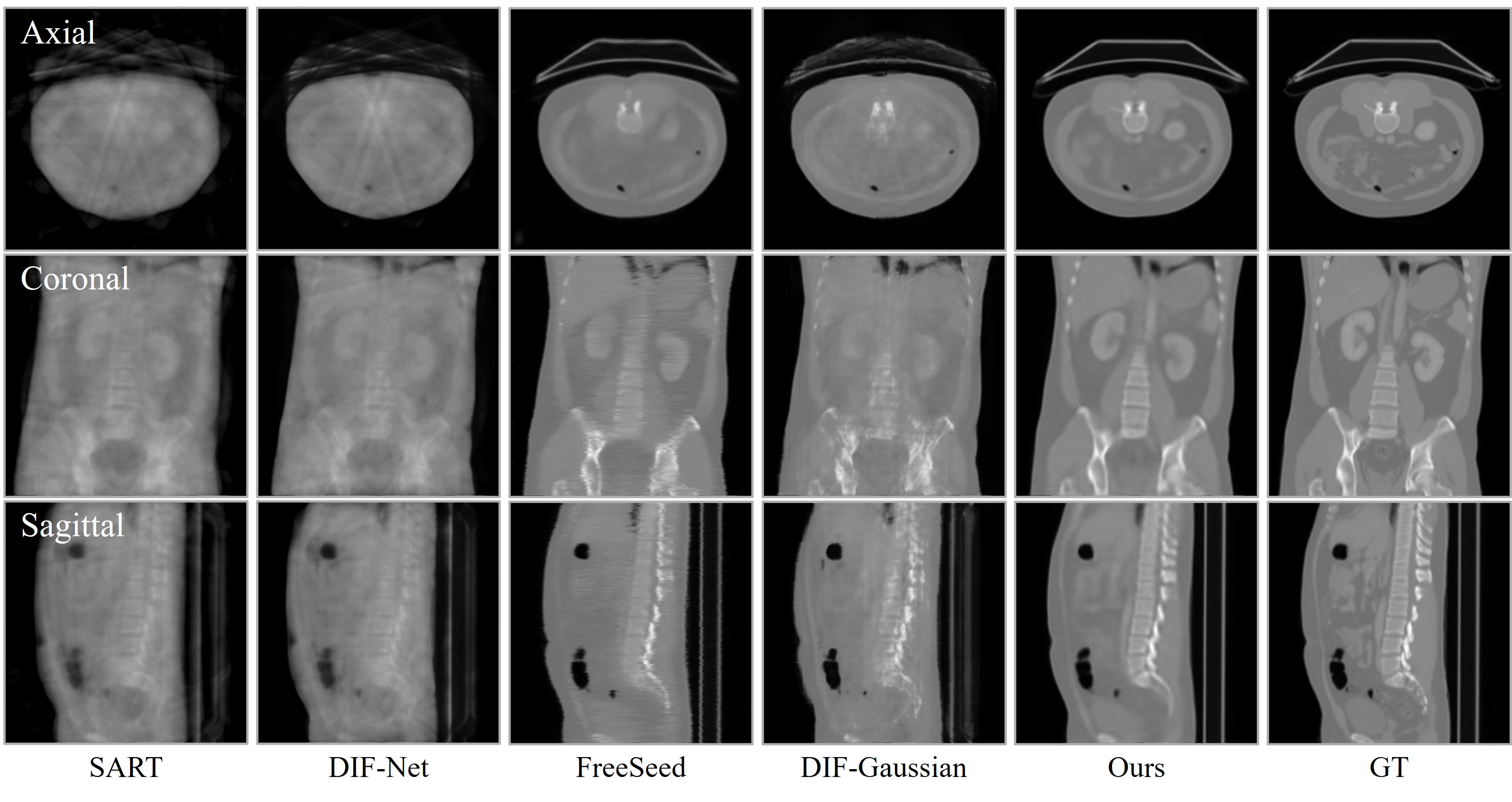

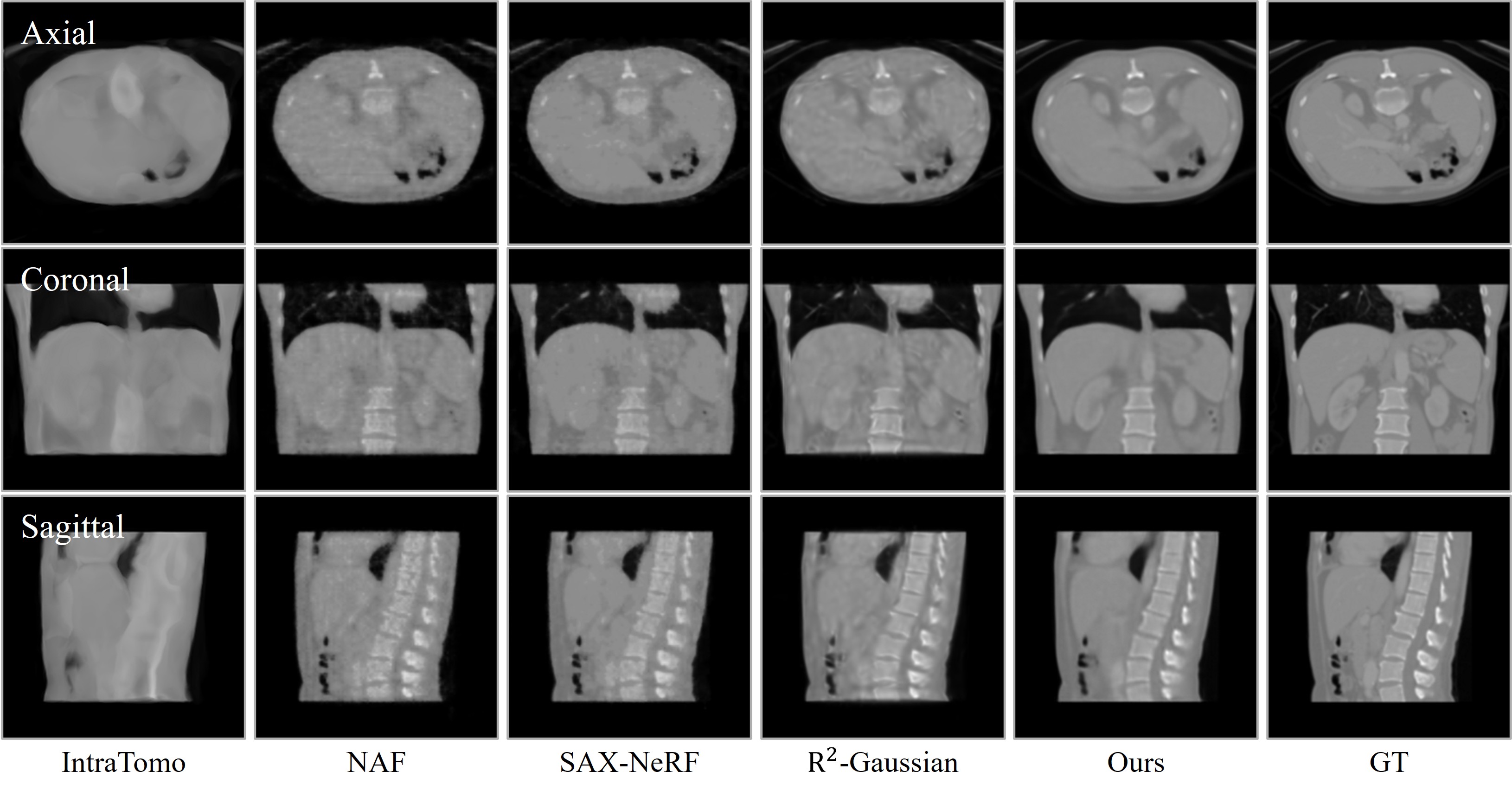

Visual comparison of CT reconstruction across different views. ILV achieves significantly cleaner structural details and consistency under both 10-view and 24-view sparse settings compared to existing methods.

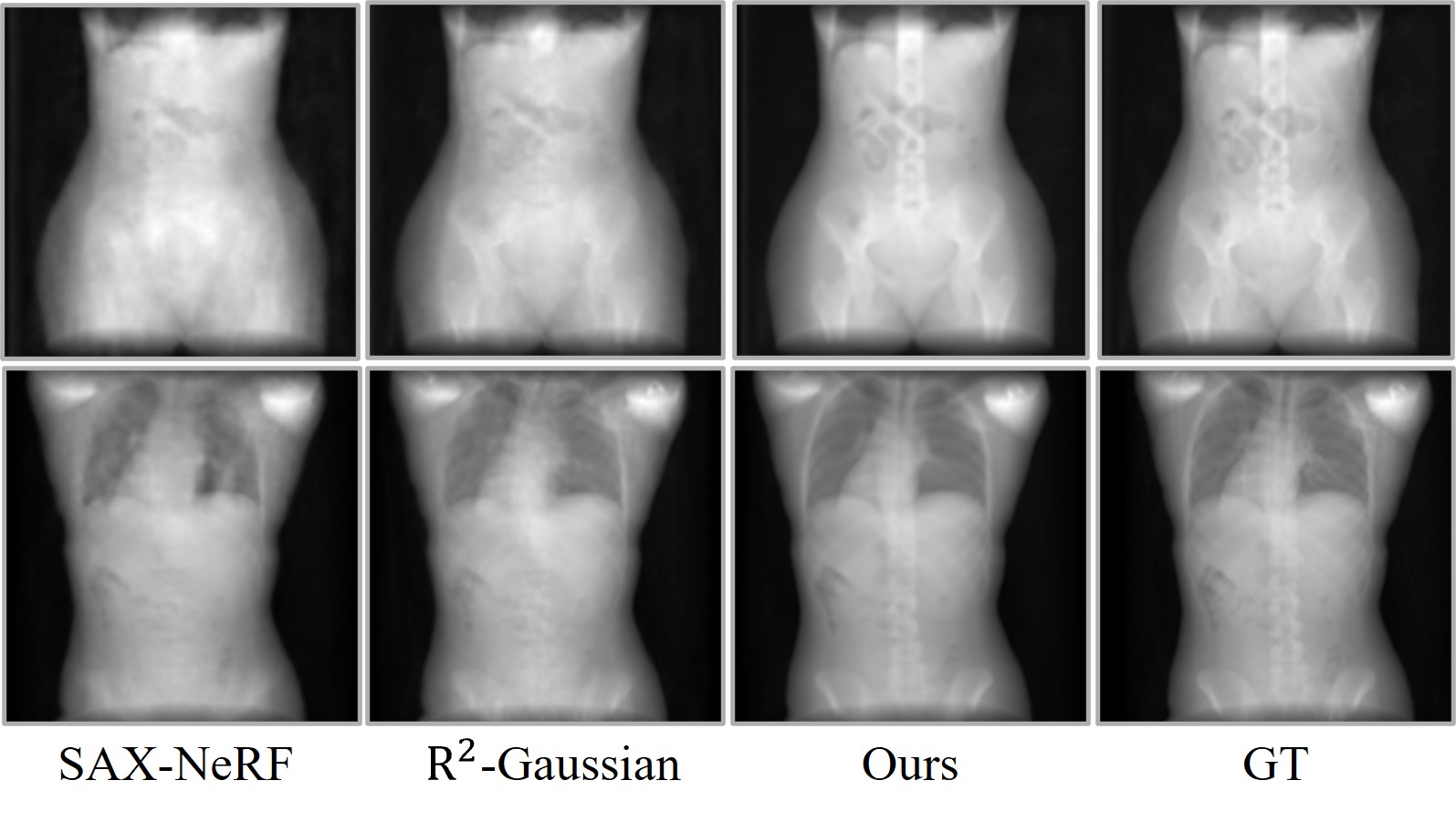

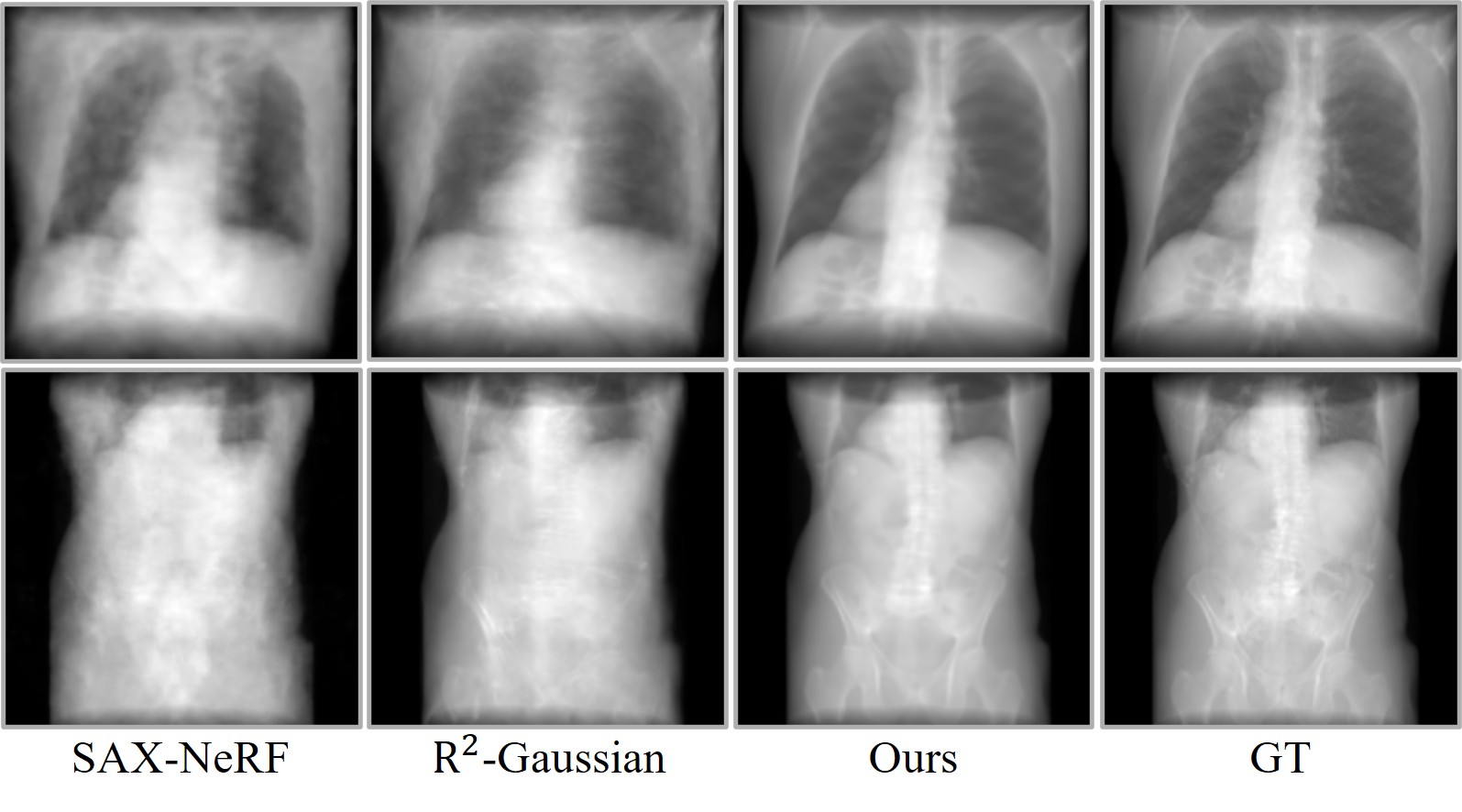

Synthesis results for X-ray novel view synthesis. ILV successfully recovers sharp object boundaries and consistent internal structures.
